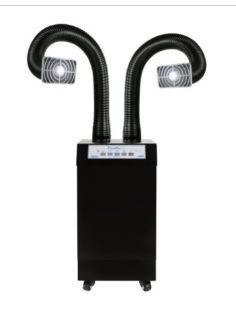

**COLOR: TBD - White, Black, Grey, Fuchsia, or Cyan**

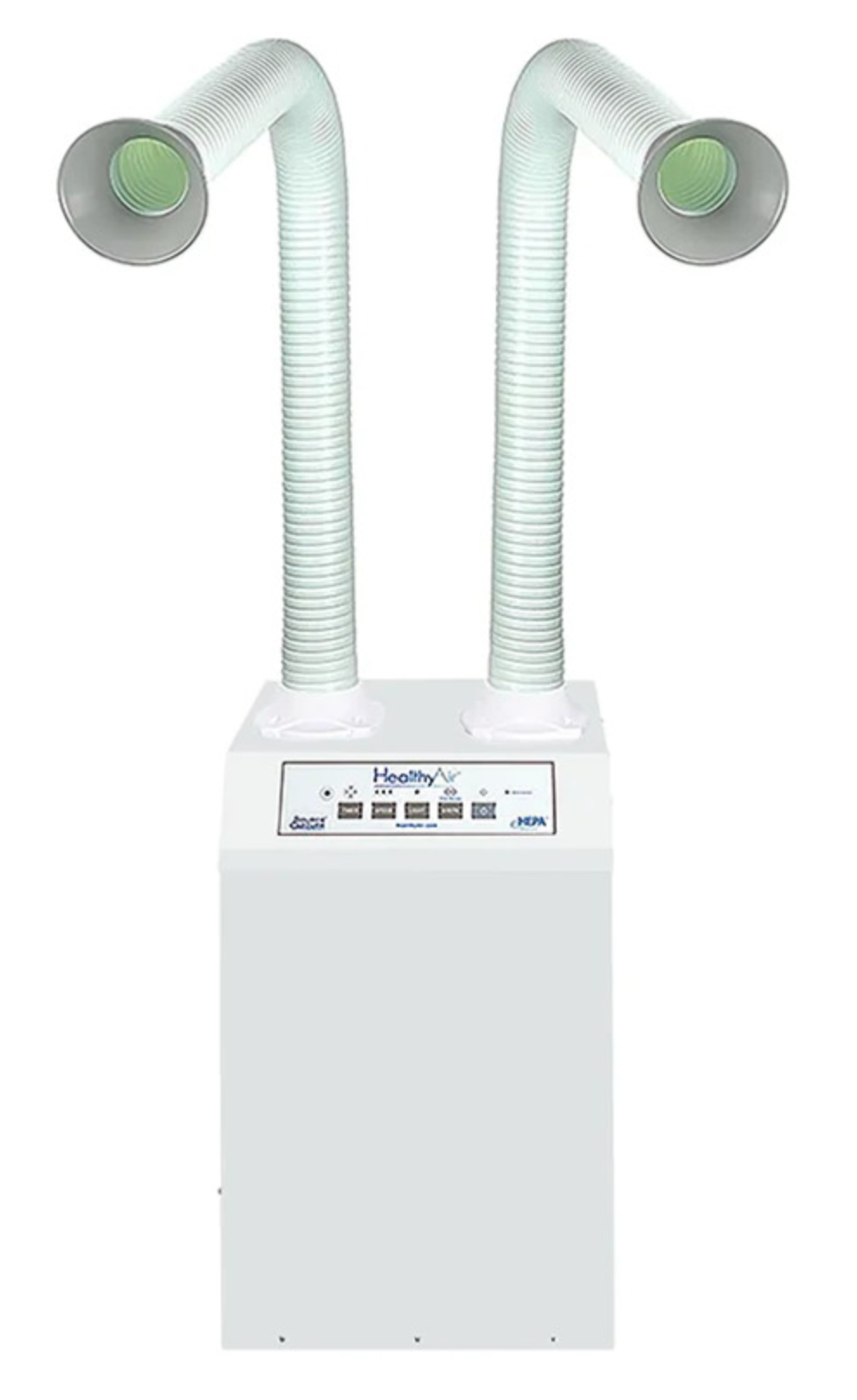

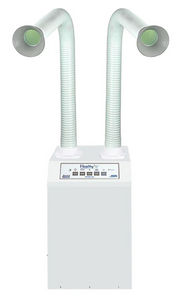

The HealthyAir® Source Capture® Fan-Filter Exhauster Dual Station system is engineered to extract airborne particulate and dust from the breathing zone to improve indoor air quality and reduce occupational hazard risks. This unit can used for air purification without being connected to a building's HVAC system, but is primarily designed for use as an Outside Ventilation unit, whereby the system is designed to take in contaminated air though the extraction hose, filter contaminants, and discharge treated air out of the facility via an exhaust duct connection in the wall to the 5” dia. outlet port of the unit.
The standard unit is equipped with (2) Extraction Hoses (4'L). The components required to setup the unit for Outside Venting come with the unit, as outlined in the manual; any additional materials necessary to make wall-duct connections not included.
Rated Voltage: 120V/60HZ
Power Consumption: 200W
Air Flow Total: 470 cfm (800 m3/h)
Air Flow/Inlet (Avg.): 118 cfm (200 m3/h)
Sound Level: 54 dB
WEIGHT: 40 lbs.
BASE DIMENSIONS: 12”l x 14”w x 24”h
HOSE LENGTH: 4'L
The HealthyAir® Source Capture® Fan-Filter Exhauster fully complies with, and exceeds, IMC Ventilation Code requirements for Nail Salons.

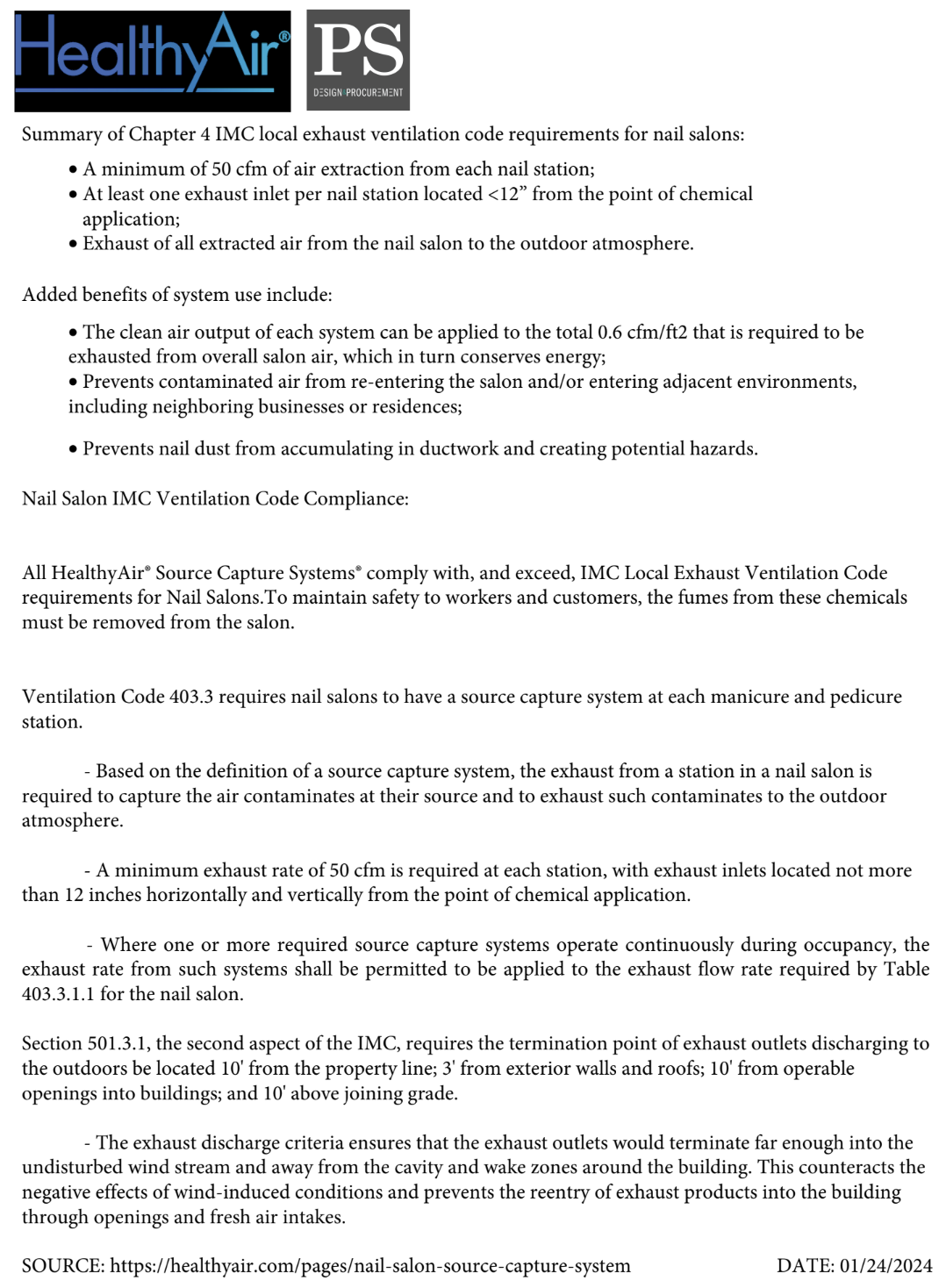

For Nail Salons IMC Chapter 4 mechanical code generally requires:
- a minimum of 50 cfm of air extraction from each nail station
- at least one exhaust inlet per nail station located <12” from the point of chemical application
- exhaust of all extracted air from the nail salon to the outdoor atmosphere
Added benefits of system use include:
- The clean air output of each system can be applied to the total 0.6 cfm/ft2 that is required to be exhausted from overall salon air, which in turn conserves energy
- Prevents contaminated air from re-entering the salon and/or entering adjacent environments, including neighboring businesses or residences
- Prevents nail dust from accumulating in duct work and creating potential hazards
Due to ongoing production constraints and component scarcity, item prices are only approximations within a few percentage points and are not guaranteed. Please contact PS directly for exact pricing.
*MEMO: PS Design & Procurement is aware that some states are subject to the International Mechanical Code regulations specific to nail services. These codes could potentially affect building ventilation infrastructure and equipment specific features. This item will likely provide assistance in meeting those code requirements, but it is suggested that you confirm your state and local building codes regarding ventilation requirements and consult with your project's MEP specialists for hookup to the building's HVAC system.
